Product Description

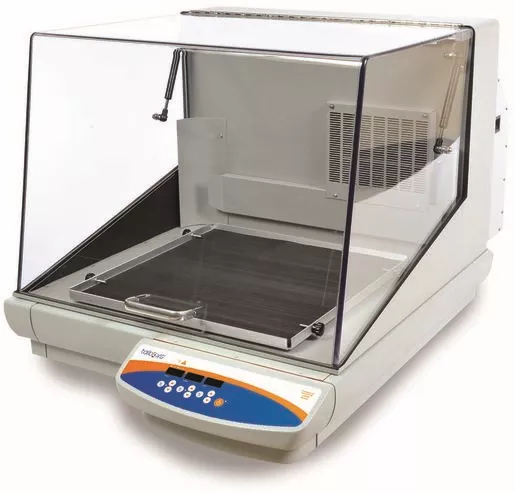

TB5000I/R 120V
Ohaus 30531240 ” title=”Incubating Shaker Orbital
TB5000I/R 120V
Ohaus 30531240 ” />Incubating Shaker Orbital
TB5000I/R 120V
Ohaus 30531240
Save Incubator Space with Benchtop Incubating and Incubating Refrigerating ShakersThe exclusive Opti-Flow Forced Ventilation System utilizes twin induction or one large fan. Air is deflected around and not directly on the samples creating a circular flow of air ensuring uniformity.For repeatable results, the exclusive Accu-Drive shaking system ensures speed accuracy. The Triple Eccentric Drive provides smooth, stable shaking motion throughout the entire speed range.The chamber for the Model 5000I and IR is large enough to hold 2 x 6L Erlenmeyer flasks with optional clamps and platform. The Incubating 3500 shaker can hold up to 4 x 1L Erlenmeyer flasks.Product SpecificationsTemperature Range15°C below Ambient – 65°CUniformity± 0.5°C at 37°CTray Size (Length)45.7 cm (18.0 in)Tray Size (Width)45.7 cm (18.0 in)ControlDigitalInner Dimensions (Width)62.9 cmInner Dimensions (Length)52.3 cmPower Consumption800 WInner Dimensions (Length) (imp:)20.6 inDrive SystemBrushless DC MotorCalibrationTemperature calibrationSpeed Range (text)15 rpm – 500 rpmDimensions (Length)1044.0 mm (41.1 in)Speed AccuracyAbove 100rpm +/- 1%, Below 100rpm /- 1 rpmNet Weight131.7 kg (290.41 lb)Dimensions (Width)675.0 mm (26.6 in)Timer1 second – 160 hoursOrbit25.0 mm (1.0 in)Dimensions (Height)596.0 mm (23.5 in)Safety CertificationTUVTray ConstructionAluminumPower120V, 10A, 50/60HzInner Dimensions (Width) (imp:)24.8 inInner Dimensions (Height) (imp:)17.0 inInner Dimensions (Height)43.2 cm
